If you send a message to a ccTalk peripheral with an incorrect checksum then it will not reply. The 8-bit checksum is calculated by adding up all the message bytes from the destination address to the last data byte and finding the value when added to it will produce zero in modulo 256 arithmetic. For example, the ccTalk command to enable all coin inhibits is…

[ 2 ] [ 2 ] [ 1 ] [ 231 ] [ 255 ] [ 255 ] [ checksum ] 2 + 2 + 1 + 231 + 255 + 255 = 746 = 234 modulo 256 ( = 256 x 2 + 234 ).

Checksum = 256 - 234 = 22

Therefore the complete message is

[ 2 ] [ 2 ] [ 1 ] [ 231 ] [ 255 ] [ 255 ] [ 22 ] 2 + 2 + 1 + 231 + 255 + 255 + 22 = 768 = ZERO modulo 256 ( = 256 x 3 + 0 ).

------------------------------------------------------------------------------------------------------------------------------------------

Случай же 16 битной контрольной суммы:

If you send a message to a ccTalk peripheral with an incorrect checksum then it will not reply. A 16-bit CRC may used in ccTalk, positioned in the message packet as follows…

[ Dest. Addr. ] [ Size ] [ CRC-16 LSB ] [ Header ] [ Data 1 ]… [ Data N ] [ CRC-16 MSB ]

The ccTalk protocol uses the following parameters…

• CRC-CCITT

• Polynomial = x^16 + x^12 + x^5 + 1

• Initial crc register = 0x0000

It is necessary to have some programming experience as calculating it by hand is no fun. A simple poll would have the following CRC data…

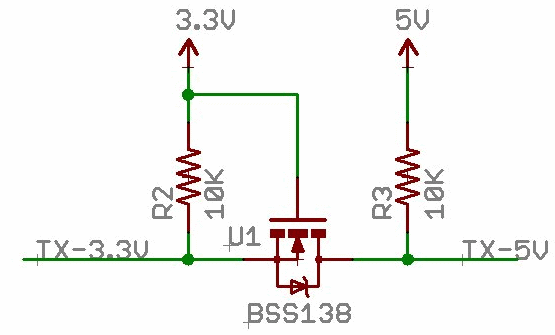

TX : [ 40 ] [ 0 ] [ a ] [ 254 ] [ b ] a = 182 b = 33

RX : [ 1 ] [ 0 ] [ a ] [ 0 ] [ b ] a = 48 b = 55

.............

void generate_crc_lookup_CCITT_A( void )
{
int i;
BYTE z = 0;
for ( i = 0; i < 256; ++i )
crc_lookup_table_CCITT_A[ i ] = calculate_crc_loop_CCITT_A( 1, &z, i << 8 );
}

WORD calculate_crc_lookup_CCITT_A( int l, BYTE *p, WORD seed )
{
int i;
WORD crc = seed;
for ( i = 0; i < l; ++i )
crc = ( crc << 8 ) ^ crc_lookup_table_CCITT_A[ ( crc >> 8 ) ^ p[ i ] ];
return crc;
}

const unsigned short crc_ccitt_lookup[] =
{
0x0000, 0x1021, 0x2042, 0x3063, 0x4084, 0x50A5, 0x60C6, 0x70E7,
0x8108, 0x9129, 0xA14A, 0xB16B, 0xC18C, 0xD1AD, 0xE1CE, 0xF1EF,
0x1231, 0x0210, 0x3273, 0x2252, 0x52B5, 0x4294, 0x72F7, 0x62D6,
0x9339, 0x8318, 0xB37B, 0xA35A, 0xD3BD, 0xC39C, 0xF3FF, 0xE3DE,
0x2462, 0x3443, 0x0420, 0x1401, 0x64E6, 0x74C7, 0x44A4, 0x5485,
0xA56A, 0xB54B, 0x8528, 0x9509, 0xE5EE, 0xF5CF, 0xC5AC, 0xD58D,
0x3653, 0x2672, 0x1611, 0x0630, 0x76D7, 0x66F6, 0x5695, 0x46B4,
0xB75B, 0xA77A, 0x9719, 0x8738, 0xF7DF, 0xE7FE, 0xD79D, 0xC7BC,
0x48C4, 0x58E5, 0x6886, 0x78A7, 0x0840, 0x1861, 0x2802, 0x3823,
0xC9CC, 0xD9ED, 0xE98E, 0xF9AF, 0x8948, 0x9969, 0xA90A, 0xB92B,
0x5AF5, 0x4AD4, 0x7AB7, 0x6A96, 0x1A71, 0x0A50, 0x3A33, 0x2A12,
0xDBFD, 0xCBDC, 0xFBBF, 0xEB9E, 0x9B79, 0x8B58, 0xBB3B, 0xAB1A,
0x6CA6, 0x7C87, 0x4CE4, 0x5CC5, 0x2C22, 0x3C03, 0x0C60, 0x1C41,
0xEDAE, 0xFD8F, 0xCDEC, 0xDDCD, 0xAD2A, 0xBD0B, 0x8D68, 0x9D49,
0x7E97, 0x6EB6, 0x5ED5, 0x4EF4, 0x3E13, 0x2E32, 0x1E51, 0x0E70,
0xFF9F, 0xEFBE, 0xDFDD, 0xCFFC, 0xBF1B, 0xAF3A, 0x9F59, 0x8F78,
0x9188, 0x81A9, 0xB1CA, 0xA1EB, 0xD10C, 0xC12D, 0xF14E, 0xE16F,
0x1080, 0x00A1, 0x30C2, 0x20E3, 0x5004, 0x4025, 0x7046, 0x6067,
0x83B9, 0x9398, 0xA3FB, 0xB3DA, 0xC33D, 0xD31C, 0xE37F, 0xF35E,
0x02B1, 0x1290, 0x22F3, 0x32D2, 0x4235, 0x5214, 0x6277, 0x7256,
0xB5EA, 0xA5CB, 0x95A8, 0x8589, 0xF56E, 0xE54F, 0xD52C, 0xC50D,
0x34E2, 0x24C3, 0x14A0, 0x0481, 0x7466, 0x6447, 0x5424, 0x4405,
0xA7DB, 0xB7FA, 0x8799, 0x97B8, 0xE75F, 0xF77E, 0xC71D, 0xD73C,
0x26D3, 0x36F2, 0x0691, 0x16B0, 0x6657, 0x7676, 0x4615, 0x5634,
0xD94C, 0xC96D, 0xF90E, 0xE92F, 0x99C8, 0x89E9, 0xB98A, 0xA9AB,
0x5844, 0x4865, 0x7806, 0x6827, 0x18C0, 0x08E1, 0x3882, 0x28A3,
0xCB7D, 0xDB5C, 0xEB3F, 0xFB1E, 0x8BF9, 0x9BD8, 0xABBB, 0xBB9A,
0x4A75, 0x5A54, 0x6A37, 0x7A16, 0x0AF1, 0x1AD0, 0x2AB3, 0x3A92,
0xFD2E, 0xED0F, 0xDD6C, 0xCD4D, 0xBDAA, 0xAD8B, 0x9DE8, 0x8DC9,
0x7C26, 0x6C07, 0x5C64, 0x4C45, 0x3CA2, 0x2C83, 0x1CE0, 0x0CC1,
0xEF1F, 0xFF3E, 0xCF5D, 0xDF7C, 0xAF9B, 0xBFBA, 0x8FD9, 0x9FF8,
0x6E17, 0x7E36, 0x4E55, 0x5E74, 0x2E93, 0x3EB2, 0x0ED1, 0x1EF0
};
